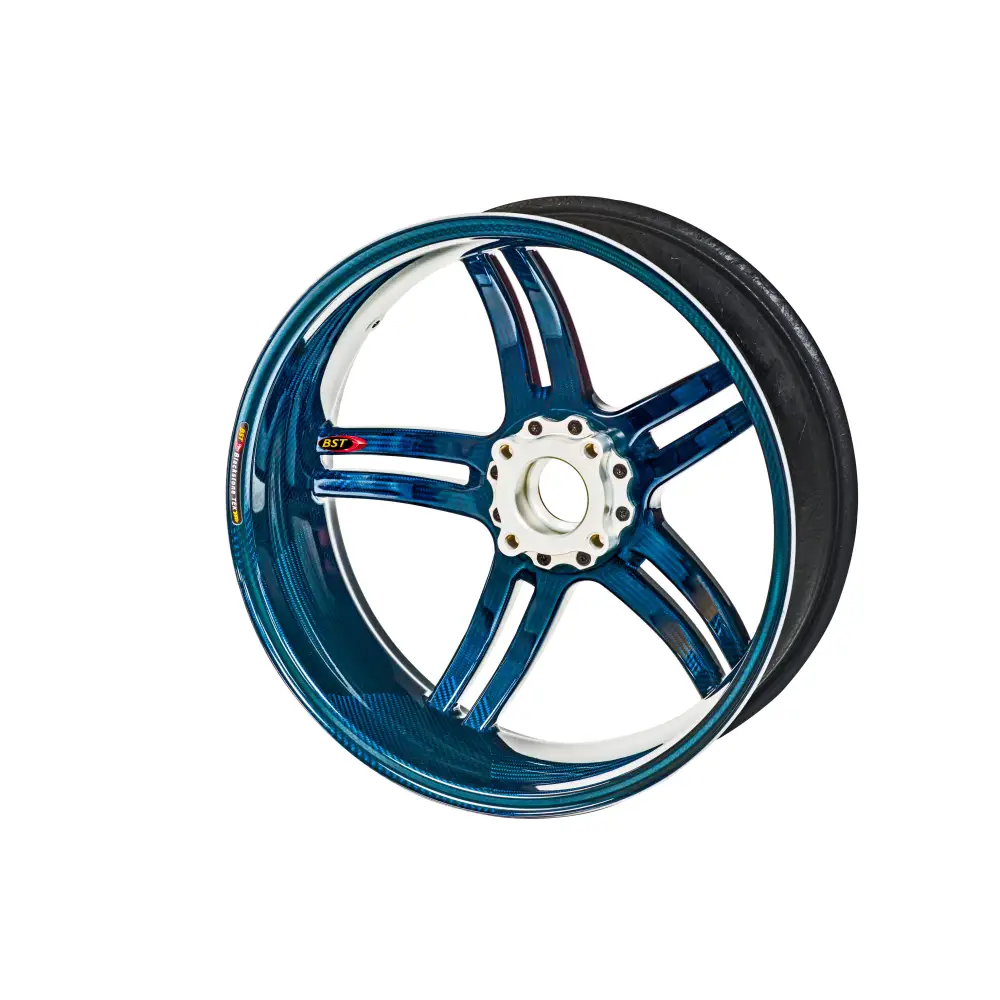

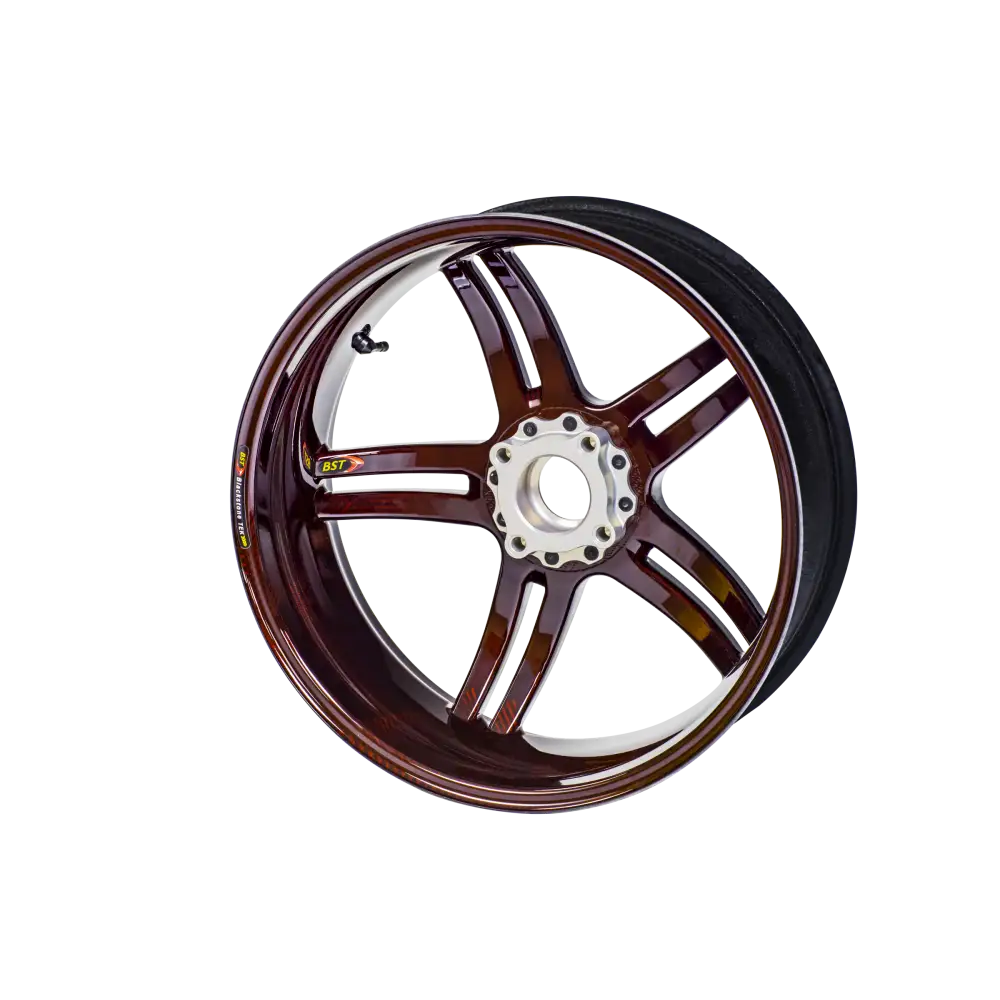

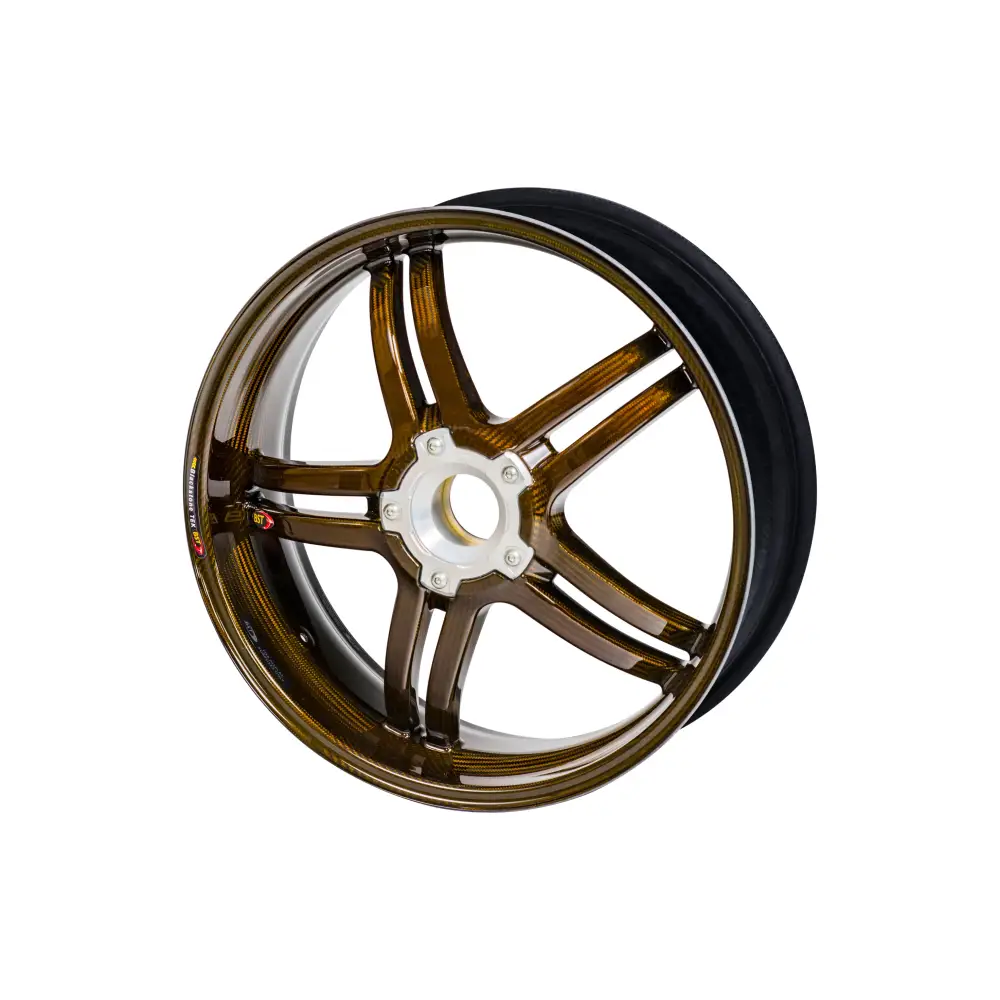

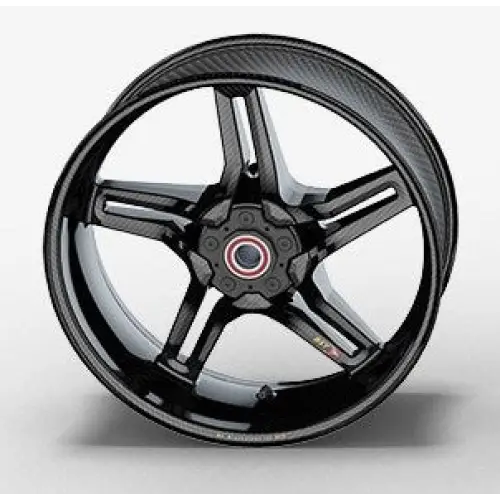

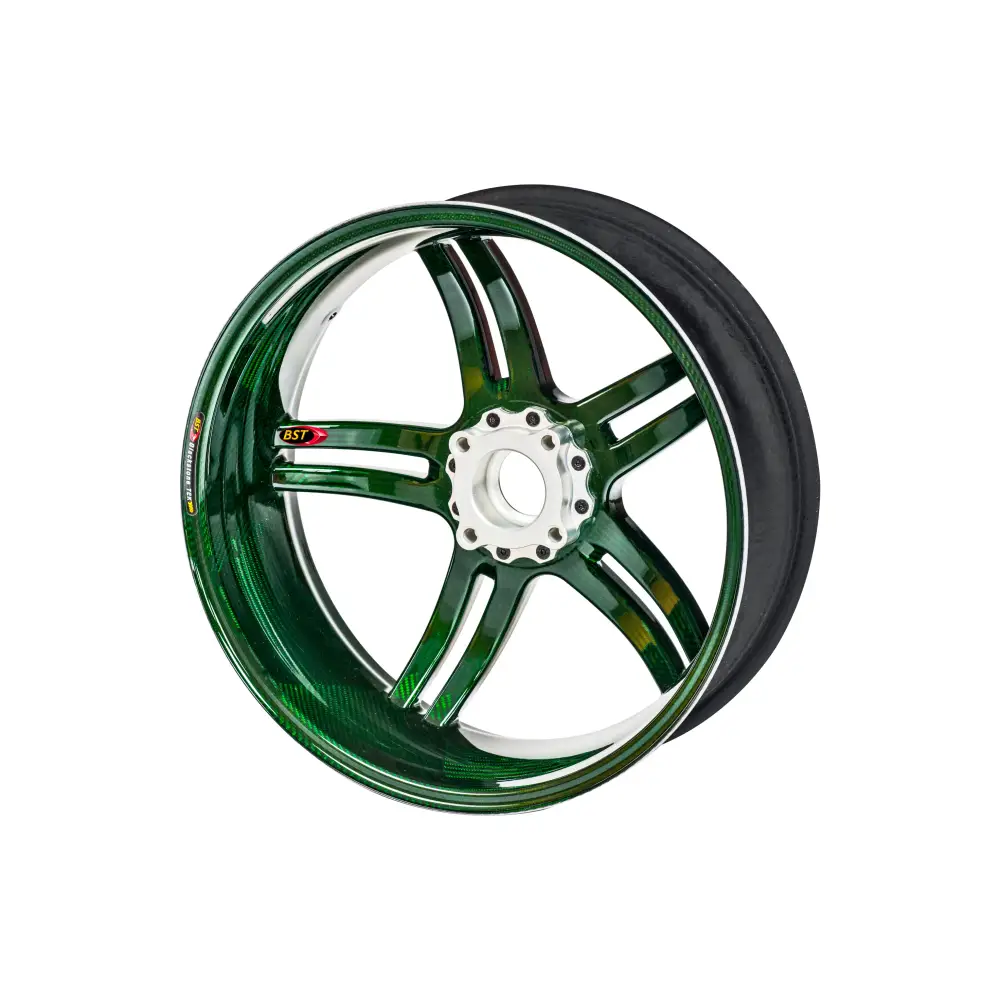

BST Rapid TEK 5 Split-Spoke Carbon Fiber Rear Wheel for the KTM Duke 790 / 890 - 6.0 x 17
to volume production, these wheels have been subjected to the same rigorous testing as all the BST wheels. Also Rapid TEK carbon fiber conventional rear wheel offers interchangeable parts so that a rider can swap wheels when he changes his motorcycle. That’s a neat piece of engineering.
• The lighter rim lowers the Moment of Inertia
• Quicker response and reaction to the riders commands
• Faster Acceleration and Quicker Braking
• Interchangeability between certain makes and models
• Strength and safety
- SIZE : 6.0" x 17"
-
WEIGHT : 5.29-5.70 lbs. (2.4-2.6 kg) excluding sprocket carrier and depending on fitment
- STATIC LOAD RATING : 617 lbs (280 kg)
- IMPACT: 926 lbs (420 kg)
- CORNERING FREQUENCY: 36.9 Hz
- TORSION: 1030 Nm
- BENDING: 719 Nm for 1,000,000 cycles
- BENDING STIFFNESS: 1636 Nm / degree
- ROTATIONAL INERTIA: 37,300 kg*mm cubed
-
MATERIALS: Wheel - Pre-preg Carbon Fiber; Hubs - 6082 T6 Aluminum
- STYLE : Split five-spoke configuration
- VALVE STEMS : BST Ultra-High-Speed (UHS) 90-degree, aluminum stems and caps
- APPROVALS : DOT E and JWL for street and track use
- WARRANTY : 2 Years
Weighing between 40 and 60 percent less than OEM wheels, BST wheels bestow sportbikes with sharper corner-carving abilities, faster acceleration, and quicker braking by weighing less than their production-bike counterparts. Lighter wheels are also easier for suspension systems to control over bumps and irregular surfaces, yielding more traction and unimpeded acceleration. Less rotating mass also equals less rider fatigue.
A lighter rear wheel is easier for the shock to control properly, which leads to superior power application and much higher trap speeds in competition and track days.
Using high-tech processes pioneered in the aerospace industry, BST wheels are manufactured in a single molding operation. This technique produces a wheel that is far superior in strength and much lighter than any aluminum or magnesium wheel, and one that is light and strong enough for racing and street use.
BST wheels are a unique monococque (single unit) design with hollow spokes. The end result is wheels with unsprung weight reduced 40-60 percent compared to stock wheels. This delivers the lowest possible moment of inertia, a critical factor that affects all aspects of motorcycle performance.
Maximizing the molecular and structural properties of carbon fiber, BST has reduced spoke and rim weight without compromising their strength. Mass is therefore concentrated in the hub, reducing rotational inertia. This results in quicker acceleration and braking, allowing faster corner entry and exit speeds.
BST designs the tooling, molds, wheel and hubs, then manufactures them in its state-of-the-art factory. Precision cutting machines, like those used in the aeronautical industry, ensure that the process is repeatable and meets the highest certification standards. BST uses only the finest “prepreg” carbon fiber, which is embedded in a top-secret resin matrix epoxy. Carbon-fiber layup is done in a dust-free and temperature-controlled “clean room.” The wheels are cured in a superheated steam oven, or autoclave, at 260 degrees and 85 psi. This produces the best material compaction and smoothest surface finish. Every step of this process is logged, the entire history of each wheel is stored and stamped with a unique serial number. To ensure the highest quality manufacturing processes and components, BST’s entire operation is managed under strict, new ISO 9002 standards.
BST works with it's suppliers to ensure we get the best and most advanced materials for our wheels. Since December 2011 BST has been using carbon from Umeco Structural Materials (USM) that is impregnated with the EF1808 resin system explained like this:
"The EF1808 resin formulation resulted from a dedicated research program undertaken by USM to develop a significantly toughened epoxy prepreg resin with improved flow and handling characteristics, but without the reduction in temperature resistance that so often results. The development of the epoxy prepreg resin and the way it interacts with the continuous reinforcement fibers necessitated investigation of the resin polymers at the molecular level where measurements are made in millionths of a millimeter. This detailed understanding of the resulting composite structures was the key to achieving significant improvements in the product’s performance."
The new system in its fully cured condition displays improvements
of more than 30% in both damage tolerance and fracture toughness
(as measured by Compression Strength After Impact and G1c Fracture Toughness respectively) whilst maintaining its temperature
resistance (Tg).
We have the skill, knowledge and experience in the management, design, engineering, machining and process management required to produce significant volumes of our product, each of which has its own unique serial number with full trace-ability of every component. BST is the only CF wheel manufacturer that has ISO 9001:2008 certification and that passes the highest test criteria
• Winner of numerous international awards
• Biggest aftermarket supplier
• Wheel sizes ranging from 12” to 23”
• 200+ fitments for 20 different manufacturers
• 6 different styles of wheels
• 25 000+ wheels in the market worldwide
• The world’s only OEM certified motorcycle carbon fiber wheels and supplier
• JWL and DOT E compliant
• ISO 9001:2008 certified since 2003 and audited by the German TÜV
• 4800 square meter (51 500 square feet) state of the art manufacturing facility
• 15+ Years of excellence, since 2002
