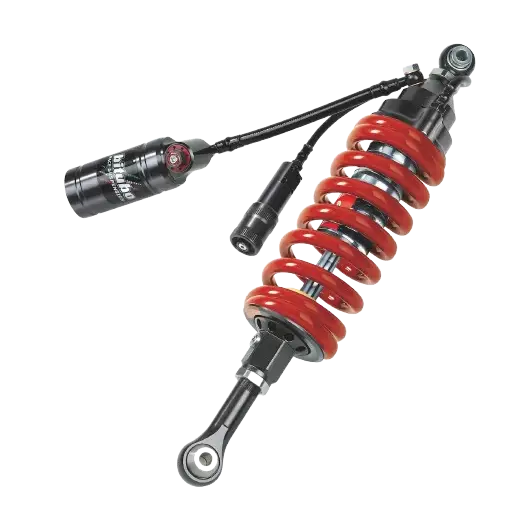

Bitubo CLU31 – Rear Mono Shock – Red Spring Suzuki GSR750 11 - 16
STATE-OF-THE-ART TECHNOLOGY AND PERFORMANCE:
Thanks to the innovations introduced by our products. The enthusiasm and great care taken by our R&D technicians enable us to propose this new evolved shock absorber that offers state-of-art technology and performance.
The compensation tank is separated from the body for better fluid cooling and more freedom in the mounting position. It is connected by a flexible hose, braided for very high pressure to improve the shock feedback and to increase the grip and comfort.
TECHNICAL FEATURES:
Pressurised with Nitrogen with oil/gas floating piston in the compensation chamber.
Piston Rod Diameter: 16mm with Anti-Friction Treatment & Low Friction Bushing.
Upper and Lower Head Attachments made from Aircraft Aluminium Alloy on precision CNC machines.
ADJUSTABILITY:
HIGH SPEED COMPRESSION: 20 clicks
LOW SPEED COMPRESSION: 24 clicks
REBOUND: 24 clicks
SPRING PRELOAD (HYDRAULIC): 12mm = 24 clicks
ADJUSTABLE LENGTH: 8mm
OPTIONAL EXTRAS:
Preload Adjuster Tool
| Weight | 5.2 kg |
|---|---|
| Dimensions | 55 × 22 × 13 cm |
| Spring Colour |
Red |
| Shock Body Ø (mm) |
45 |
| Shock Rod Ø (mm) |
16 |
| Rebound |
24 clicks |
| Compression (High Speed) |
20 clicks |
| Compression (Low Speed) |
24 clicks |
| Spring Preload (Hydraulic) |
12mm = 24 clicks |
| Adjustable Length (mm) |
8 |
| Motorcycle Brand |
Suzuki |
| Product Family |
CLU |
| MAKE | MODEL | TYPE | YEAR |
|---|---|---|---|
| MAKE | MODEL | TYPE | YEAR |
| SUZUKI | GSR750 (NO ABS) | C5 1 1 1-C5 2 1 1 | 2011 - 2016 |
