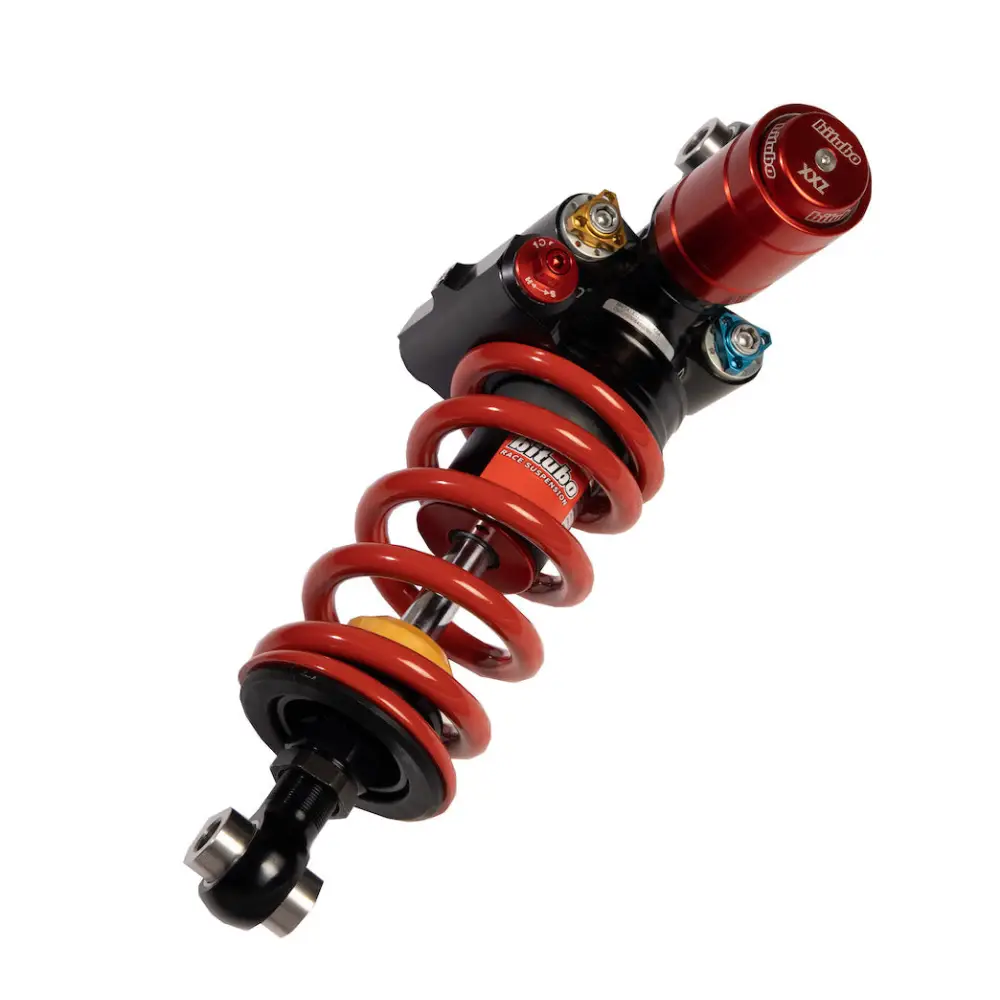

Bitubo XXZ31V2 – Rear Mono Shock – Red Spring Aprilia RSV4 09 - 17
Derived from the pluri-victorious XXF, the Mono XXZ, so far reserved only for our Official Teams, is confirmed as technologically at the top, presenting itself with a totally renewed design bringing with it many technical innovations, such as the 4 adjustments: compression and extension at low and high speeds, with new settings designed to give the rider the best feeling possible.
Inside it is renewed with technical solutions that optimise the smoothness of moving parts, improve the damping coefficient and increase the stability at high temperatures, without forgetting the use of light materials to lower the overall weight.
The Ø 14mm rod keeps a great smoothness while the piston of Ø 30mm manages the masses of fluid in motion for a faster response to stress, particular attention was dedicated to maximise the sensitivity and accuracy of adjustments.
XXZ is designed to obtain low hydraulic inertia and ensure an immediate control of vehicle oscillations.
ADJUSTABILITY:
HIGH SPEED REBOUND: 20 clicks
LOW SPEED REBOUND: 24 clicks
HIGH SPEED COMPRESSION: 20 clicks
LOW SPEED COMPRESSION: 24 clicks
SPRING PRELOAD (HYDRAULIC): 10mm = 20 clicks
ADJUSTABLE LENGTH: 8mm
| Weight | 3.5 kg |
|---|---|
| Dimensions | 55 × 22 × 13 cm |
| Spring Colour |
Red |
| Shock Body Ø (mm) |
45 |
| Shock Rod Ø (mm) |
14 |
| Shock Piston Ø (mm) |
30 |
| Rebound (High Speed) |
20 clicks |
| Rebound (Low Speed) |
24 clicks |
| Compression (High Speed) |
20 clicks |
| Compression (Low Speed) |
24 clicks |
| Spring Preload (Hydraulic) |
10mm = 20 clicks |
| Adjustable Length (mm) |
8 |
| Motorcycle Brand |
Aprilia |
| Product Family |
XXZ |
| MAKE | MODEL | TYPE | YEAR |
|---|---|---|---|
| MAKE | MODEL | TYPE | YEAR |
| APRILIA | RSV4 FACT APRC-SE | RKB00 - RKB01 | 2010 - 2013 |
| APRILIA | RSV4 FACTORY APRC | OHLINS FORK | 2009 - 2014 |
| APRILIA | RSV4 FACTORY APRC ABS | OHLINS FORK | 2013 - 2014 |
| APRILIA | RSV4 R | SHOWA FORK | 2009 - 2010 |
| APRILIA | RSV4 R APRC | SACHS FORK | 2011 - 2012 |
| APRILIA | RSV4 R APRC ABS | SACHS FORK | 2013 - 2015 |
| APRILIA | RSV4 RF | OHLINS FORK | 2015 - 2016 |
| APRILIA | RSV4 RR / EURO 4 ABS | SACHS FORK | 2015 - 2017 |
