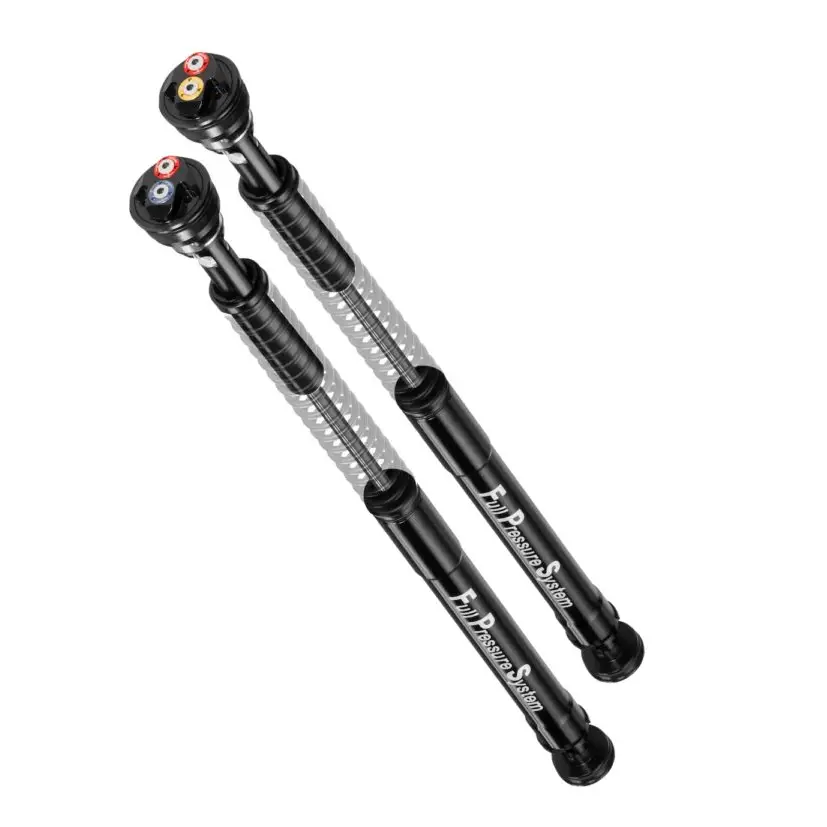

Bitubo EBH00WO – Pressurised Fork Cartridge Aprilia RSV4 FACTORY 09- 14 | RSV4 RF 15 - 16
The kit includes the cartridge only.NOT INCLUDED: Springs, Oil, Tools. The EBH pressurised cartridge incorporates a series...
- $1,552.03 USD
- $1,552.03 USD
- Unit price
- per
Subtotal:
$1,552.03
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $149
Description
xThe kit includes the cartridge only.
NOT INCLUDED: Springs, Oil, Tools.
The EBH pressurised cartridge incorporates a series of innovative systems such as the already known FPS, EC, LC and the new OPC (over pressure control) is now available in the extension and compression sleeves.
These systems are the result of a long experience of development by our Research and Development department in collaboration with some of the best teams that participated in the World SBK, BSB, IDM, CIV.
On the top cap are all adjustments, spring preload, extension and compression that are distinguished in the two cartridges, simple and intuitive.
TECHNICAL FEATURES:
Hydraulic control with FPS system (Bitubo Patent)
Ø 27mm Ergal piston
Ø 10mm pumping rod with anti-friction surface coating
Mechanical bottom-out with polyurethane buffer in NBR
Upper fork cap with integrated spring preload adjustment
Independent damping adjustment in compression and extension
Coaxial Compensation Chamber (Bitubo Patent)
Ergal cartridge body with anti-friction surface coating
Hydraulic lubrication separated from sliding lubrication
Pressurisation force control system
ADJUSTABILITY:
REBOUND: 24 clicks
COMPRESSION: 24 clicks
SPRING PRELOAD (HYDRAULIC): 15mm – 15 turns
NOTE:
No Spring
No Oil
| Weight | 5.4 kg |
|---|---|
| Dimensions | 85 × 18.5 × 12 cm |
| Fork Piston Ø (mm) |
27 |
| Fork Rod Ø (mm) |
10 |
| Rebound |
24 clicks |
| Compression |
24 clicks |
| Spring Preload (Hydraulic) |
15mm – 15 turns |
| Motorcycle Brand |
Aprilia |
| Product Family |
EBH |
| MAKE | MODEL | TYPE | YEAR |
|---|---|---|---|
| MAKE | MODEL | TYPE | YEAR |
| APRILIA | RSV4 FACT APRC-SE | RKB00 - RKB01 | 2010 - 2013 |
| APRILIA | RSV4 FACTORY APRC | OHLINS FORK | 2009 - 2014 |
| APRILIA | RSV4 FACTORY APRC ABS | OHLINS FORK | 2013 - 2014 |
| APRILIA | RSV4 RF | OHLINS FORK | 2015 - 2016 |
